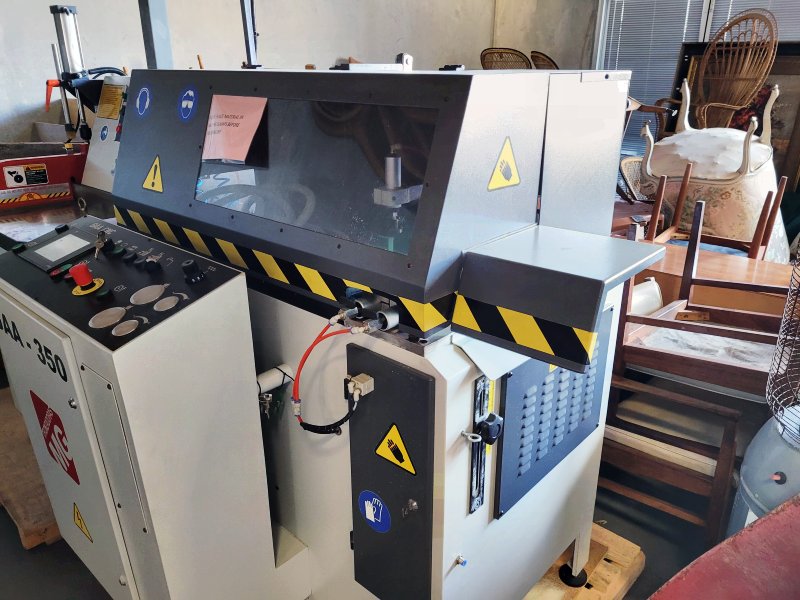

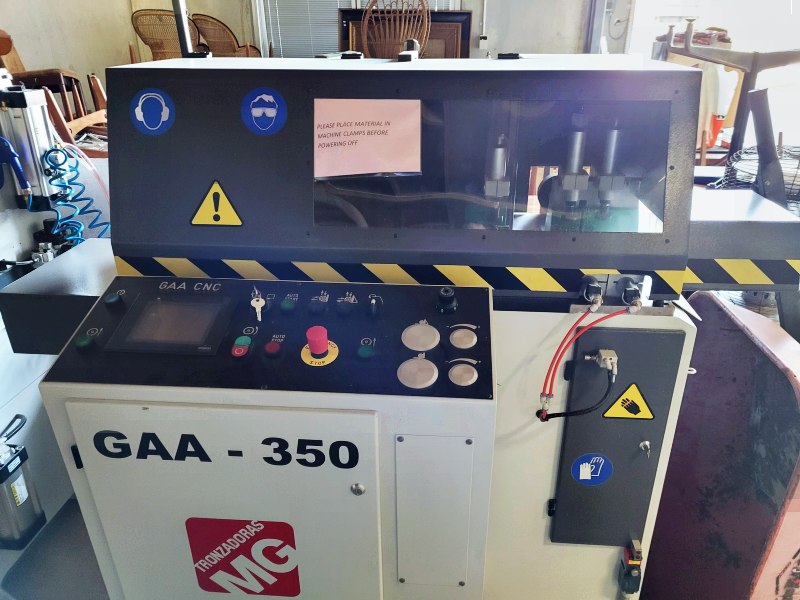

Used TRONZADORAS GAA-350-90 700mm CNC Aluminium Feed Saw Machine
The Used TRONZADORAS GAA-350-90 700mm CNC Aluminium Feed Saw machine Features are CNC setting of the cutting data (20 job programs),5.6″ Colour TFT touch screen panel,Material out detection,Cutting length tollerance = +/- 0.05mm,Max feeder stroke 700mm with multiple indexing,Hydropneumatic feeding of the sawblade,Precise control of the cutting feed rate,Enclosed cutting zone with interlocked hood,Blade stroke limiter for fast repetition cutting,Mist spray blade lubrication,Secure horizontal & vertical pneumatic clamping,Preperation for swarf extraction,No Loading facilities on site
Used TRONZADORAS GAA-350-90 700mm CNC Aluminium Feed Saw Machine
Used TRONZADORAS GAA-350-90 700mm CNC Aluminium Feed Saw Machine
Description
Used TRONZADORAS GAA-350-90 700mm CNC Aluminium Feed Saw Machine Features
- CNC setting of the cutting data (20 job programs)

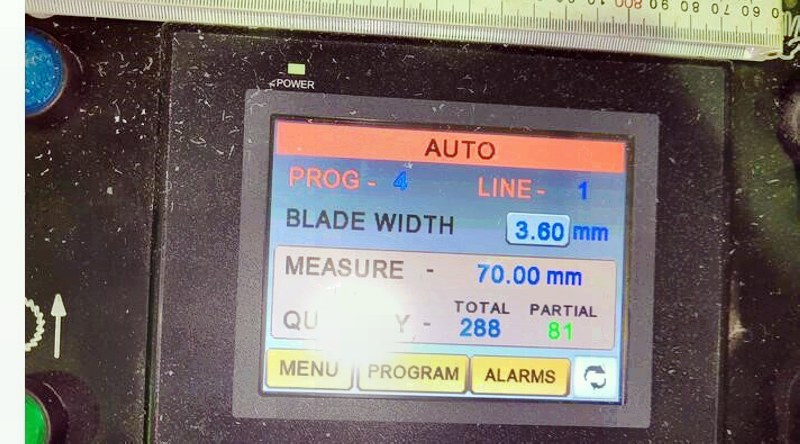

- 5.6″ Colour TFT touch screen panel
- Material out detection
- Cutting length tollerance = +/- 0.05mm
- Max feeder stroke 700mm with multiple indexing
- Hydropneumatic feeding of the sawblade
- Precise control of the cutting feed rate
- Enclosed cutting zone with interlocked hood
- Blade stroke limiter for fast repetition cutting
- Mist spray blade lubrication

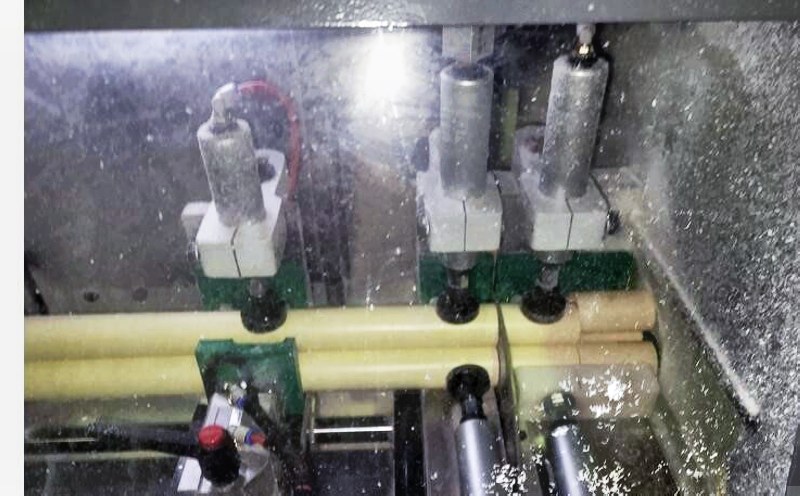

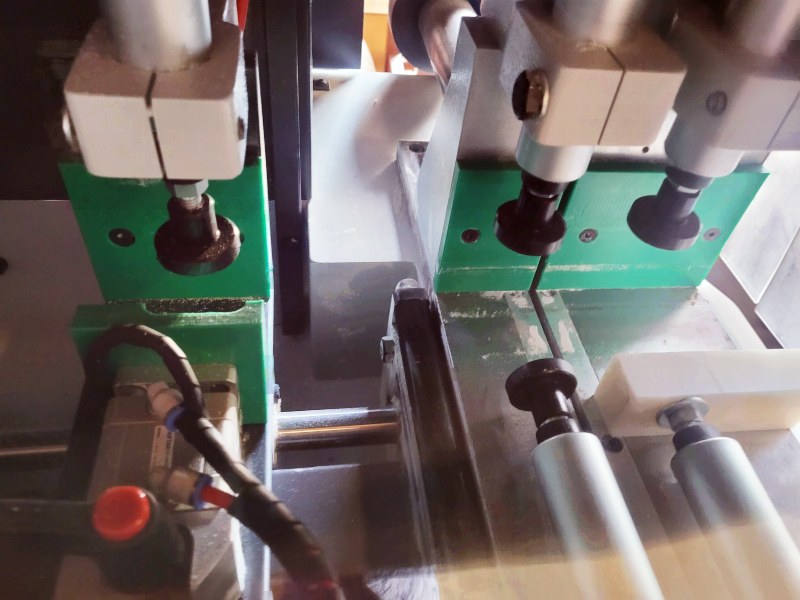

- Secure horizontal & vertical pneumatic clamping
- Preperation for swarf extraction
- No Loading facilities on site

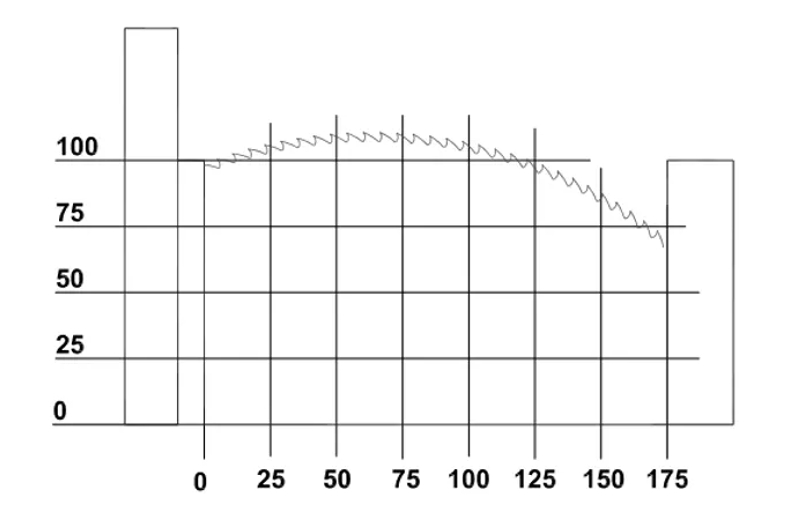

Cutting Chart

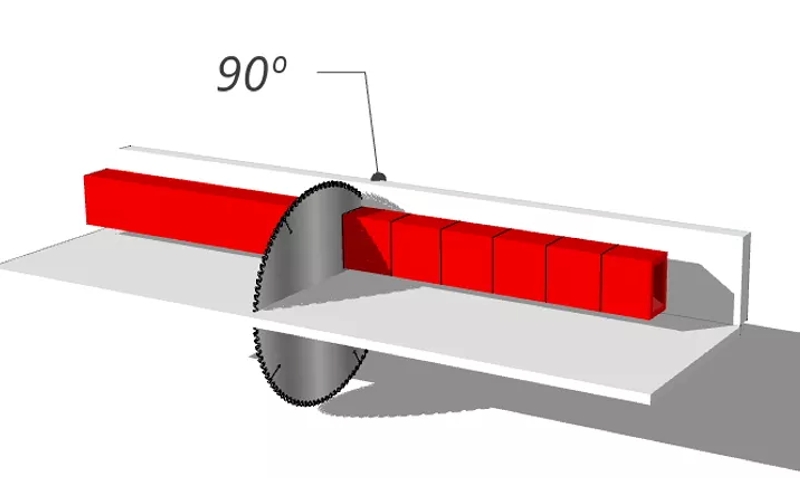

Cutting Degrees
Specification
| Model | CNC 700 mm Feed Saw |
| Cutting Degree | 90° |
| Power | 415 V |
| Blade Speed | 3000rpm |
| Feeder Lenght | 300mm/ 700mm CNC |
| Blade Size | 350 mm Diameter (Internal 32mm) |
| Motor | 3 HP |
| Cut Hight | 100 mm |
| Air Consumption | 15ltrs/min |
| Weight | 350 Kg |
| Dimensions | 1500 x 1400 x 970 mm |
| Buttton | Emergency Stop (Kill Switch) |
| Hours | 90 |
Additional information
Additional information
| Weight | 350 kg |
|---|---|
| Dimensions | 190 × 140 × 97 cm |
| Horse Power (HP) |
