SMG Rapid-Edge 28G Gear Type Plate Beveling Machine
The SMG Rapid-Edge 28G-R Auto Feed Gear Type Plate Beveling Machine is designed to work with various plate beveling applications.
This highly efficient Metal Plate Beveling Machinery is widely used in the construction industry for precision welding preparations.
With efficient processing speeds from 1.5 – 2.6 meters per minute, reducing operator processing time.
The ability to clamp a range of plate clamping thicknesses from 6-30mm and an adjustable bevel angle range of 25 – 45 degrees.
Capital Machinery is your premier supplier of Plate Beveling Machine in Australia.
We offer top-quality brands and provide quality service for all your beveling needs.

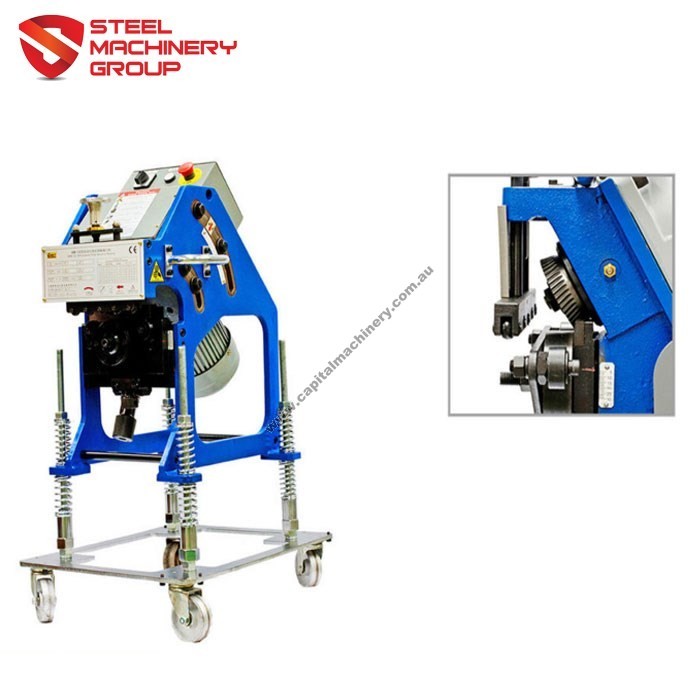

SMG Rapid-Edge 28G Gear Type Plate Beveling Machine

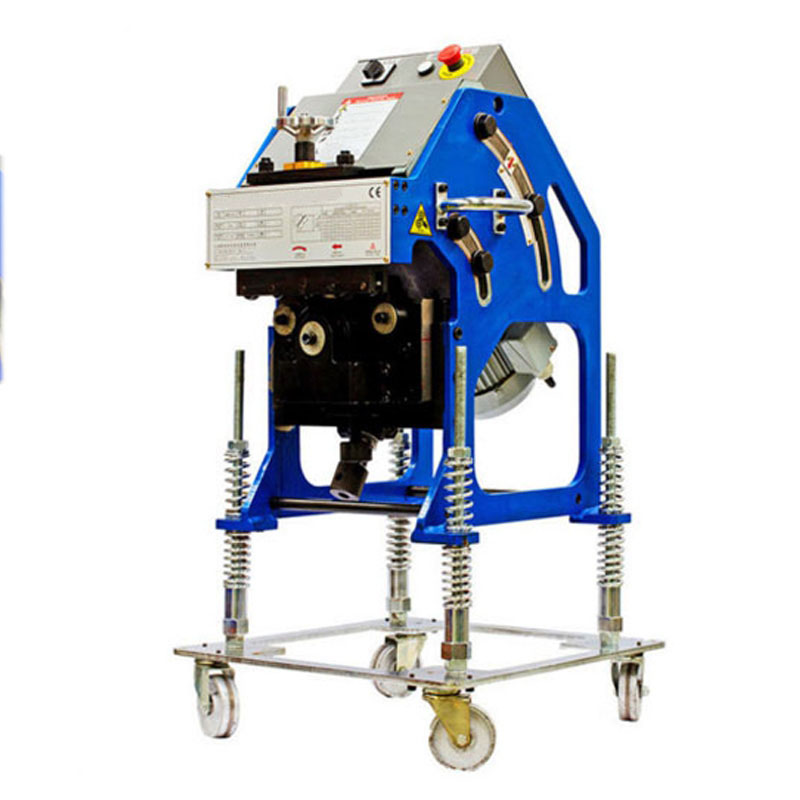

SMG Rapid-Edge 28G Gear Type Plate Beveling Machine
You may also like
-
$2,624.00 Excl. GST $2,886.40 Incl. GST Product ID: SMG-RE-10H -
$4,126.50 Excl. GST $4,539.15 Incl. GST Product ID: B10-EBBlitzer NKO B10 ELECTRA Electronic Heavy-Duty Handheld Beveler
$4,126.50 Excl. GST $4,539.15 Incl. GST -
$2,738.00 Excl. GST $3,011.80 Incl. GST Product ID: SMG-BEVELING-RE15H-P -
$12,146.00 Excl. GST $13,360.60 Incl. GST Product ID: BEVELING-SMG-18DGSMG Rapid-Edge 18DG Double Sided Gear Type Plate Beveling Machine
$12,146.00 Excl. GST $13,360.60 Incl. GST -
$5,218.00 Excl. GST $5,739.80 Incl. GST Product ID: B22-EB -
Product ID: BLITZER-UZ18
Description
SMG Rapid-Edge 28G-R Auto Feed Gear Type Plate Beveling Machine widely used in construction industry for weld preparation.Clamp thickness 9-40mm and bevel angle range 25-45degree adjustable with high efficiency at processing 1.2-1.6 meters per min. Single bevel width could reach 16mm, especially for heavy-duty metal plates.
Two processing ways:
- Model 1: Cutter catches the steel and lead into the machine to complete the job while processing small steel plates.
- Model 2: Machine will travel along the edge of steel and complete the job while processing large steel plates.
Specifications
| Model No. | SMG Rapid-Edge 28G-R Auto Feed Gear Type Plate Beveling Machine |
| Power Supply | AC 415V 50HZ |
| Total Power | 1500W |
| Motor Speed | 1450r/min |
| Feed Speed | 1.2-1.6metesr/min |
| Clamp Thickness | 9-40mm |
| Clamp Width | ＞155mm |
| Process Length | ＞100mm |
| Bevel angle | 25-45 degree as customer’s requirement |
| Single Bevel Width | 16mm |
| Bevel Width | 0 – 28mm |
| Cutter Plate | φ 115mm |
| Cutter QTY | 1 PC |
| Worktable Height | 700mm |
| Travel Space | 800*800mm |
| Weight | N.W 212KGS G.W 265KGS |
| Weight for Turntable option SMG-12D-R-GBM | N.W 315KGS G.W 360KGS |
Note: Standard Machine includes:
- 3 pcs cutter
- Tools in case
- Manual Operation
Features
- Available for material: Carbon steel, stainless steel, aluminium etc
- IE3 Standard motor at 1500w
- Hight Efficiency can reach up to 1.2-1.6meter /min
- Imported reduction gearbox for cold cutting and non-oxidation
- No Scrap Iron Splash, more safe
- Max bevel Width can reach up to 28mm
- Easy Operation
SMG Portable Plate Beveling Machine Video
SMG Portable Plate Beveling Machine Video Demo
Additional information
Additional information
| Weight | 275 kg |
|---|---|
| Dimensions | 90 × 75 × 124 cm |
