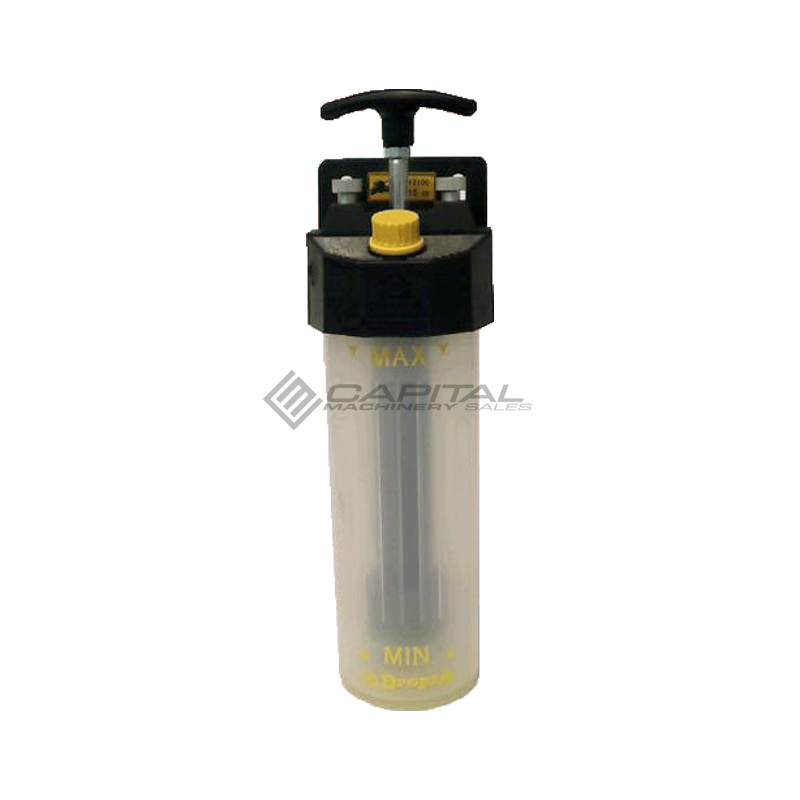

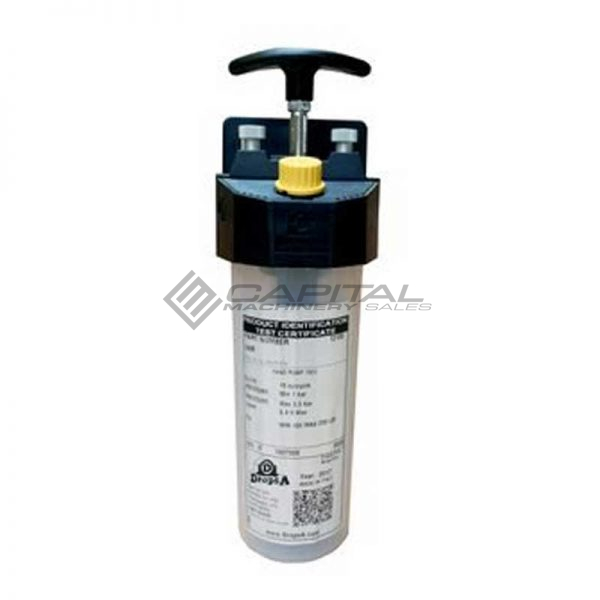

Kingsland Lubrication Pump

Brand: Kingsland

$236.50 Excl. GST $260.15 Incl. GST

Status:In stock

Key features:
– MAX pressure: 3 bar (44,1 psi)
– Flowrate: 15 cm3 / stroke (0,91 cu.in.)
– Lubricant: oil, viscosity: 100 to 250 cSt (462 ÷ 1157 SUS)

Request Quote / Check stock / Questions
Click Here Please note: This is the fastest way to receive an answer.
Stock levels cannot be checked over the phone.

$236.50 Excl. GST $260.15 Incl. GST

Fast Finance

From $1.08 Per Week

Get Finance

Description

Key features:
– MAX pressure: 3 bar (44,1 psi)
– Flowrate: 15 cm3 / stroke (0,91 cu.in.)
– Lubricant: oil, viscosity: 100 to 250 cSt (462 ÷ 1157 SUS)

Two-outlet piston pump with pin valves for setting the flow.
Placed in a central position with respect to the two out-let lines, it allows system extension. It may operate on a single line while the other line is plugged, or by simply shutting off the pin valve.

By pulling up the control handle, the distribution cylinder is filled while a spring is loaded. When the handle is released, that spring will act on the piston by pushing lubricant into the delivery piping.
