ICARO CP38/45 Combined Rebar Cutter And Bender With 5 Bend Angle Controller
$17,794.80 Excl. GST $19,574.28 Incl. GST
Description
For unmatched bending and cutting applications, the ICARO CP 38/45 – Combined Rebar Cutter and Bender Machine presents a great addition to your workshop. Allowing the operator cut and bend rebar on the same machine in one location. Our Combined Rebar Cutter and Bending machines are guaranteed to produce quality results.
ICARO CP38/45 Combined Rebar Cutter And Bender Features
- Manufactured in Italy using local European components
- Bidirectional bending table for efficient bending in both directions.
- Compact bar cutting station with adjustable bar support block and safety guard
- User friendly design, fast and easy operation and control
- Proprietary special purpose grease filled gearbox with laminated helical gearing
- Multiple controller options available
- All machines are bluetooth ready: allowing production diagnostics and equipment monitoring using the optional antenna module.
- Compact design for workshops and onsite use
- Safety guarded with interlock systems
- Abides by CE standard European laws and global regulations ISO9001/2008
- Replacement bending bushes and spare parts available in stock
Common Australian Bar Grades
- Grade 250 – 250MPA = 25.5 Kg/mm2
- Grade 300 – 300MPA = 30.6 Kg/mm2
- Grade 500 – 500MPA = 51.0 Kg/mm2
MODEL |
Motor DriveKw |
Cutting & Bending Capacity |
WeightKg |
Machine DimensionsCm |
||||||
|
Bar Hardness 650MPA/65KGmm2 |
Bar Hardness 850MPA/85KGmm2 |
|||||||||
| 1 x Ø | 2 x Ø | 3 x Ø | 1 x Ø | 2 x Ø | 3 x Ø | |||||
| CP 24/28 | 1.85 | Cut | 20 | 14 | 10 | 18 | 10 | 6 | 280 | 68x72x83 |
| Bend | 24 | 16 | 12 | 22 | 14 | 10 | ||||
| CP 26/32 | 2.2 | Cut | 24 | 18 | 12 | 22 | 16 | 10 | 340 | 95x75x90 |
| Bend | 28 | 22 | 18 | 26 | 20 | 16 | ||||
| CP 30/35 | 3 | Cut | 26 | 20 | 16 | 22 | 18 | 14 | 450 | 85x110x85 |
| Bend | 30 | 24 | 18 | 28 | 22 | 16 | ||||
| CP 38/45 | 4 | Cut | 30 | 24 | 18 | 28 | 20 | 14 | 650 | 104x116x89 |
| Bend | 36 | 28 | 22 | 34 | 26 | 22 | ||||
| CP 50/54 | 5.5 | Cut | 40 | 28 | 18 | 34 | 26 | 15 | 1000 | 100x130x100 |
| Bend | 48 | 34 | 28 | 40 | 36 | 24 | ||||
ICARO CP38/45 Combined Shearing Blade Size / Dimension
- Cutter 1: 1 x 58mm W x 58mm L x 20 mm H
- Cutter 2: 1 x 78mm W x 48/43mm L x 20 mm H
All the tests were carried out using iron bars coming from all over the world. The iron bars used are all followed the standards: DIN488, BS4449/2005, BS4449/97, ASTM/A706/A706M-00, ASTM (A615M-2000, UNE 36068, LNEC E450, NEN6008 (NL), NF A 35080-1, SD490 with different GRADE and toughness
|
Technical Specification |
|
|
Weight Kg |
650 |
|
Measurements cm |
104 x 116 x 89 |
|
Motor (50 Hz) KW/HP |
4/5, 5 |
|
Motor (60 Hz) KW/HP |
4, 8/6, 5 |
|
RPM (50hz) |
6 |
|
Grease KG |
8 |
|
Working Disc ϴ |
380 |
|
General Equipment |
|
|
Standard |
Optional |
|
Foot pedal control |

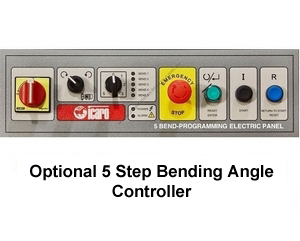

5 Step bending angle controller |
|
Compact bar cutting station |

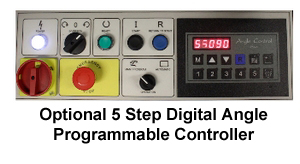

5 Step Digital Angle programmable controller |
|
Bluetooth ready module |
Bluetooth antenna module |
|
2 x Bending angle setting pins |
Single phase supply 240vac Inverter |
|
6 x Bending bushes & Pins |
Extender Arm for large radius bending |
|
Squaring arm & stop |
Stirrup Bending Attachment with length stop |
|
C.E Safety guard & limit switch |
Spiralling forming attachment |
|
Digital display voltage Indicator (60V-500V) |
Linear length stop |
|
4 x Cabinet castor wheels |
|
|
Tool kit with hex keys |
|

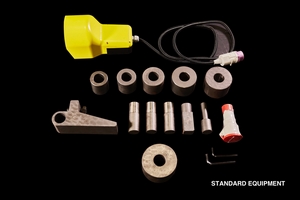

Standard Equipment
Standard Equipment Pins & Bushes

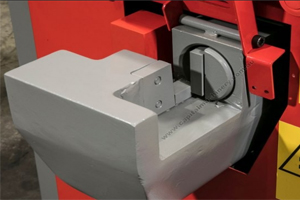

Bar Cutting Station

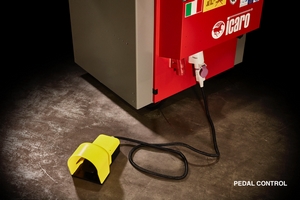

Foot Pedal Control
BlueTooth ready module

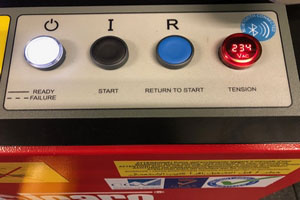

Supply voltage indicator (60V-500V)

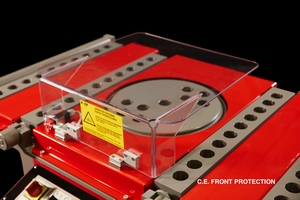

C.E Front Protection
Optional Equipment

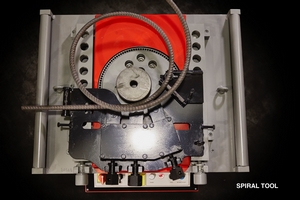

Spiralling forming attachment
Choice of optional controllers

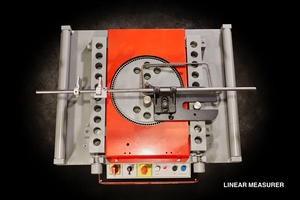

Linear Length Stop

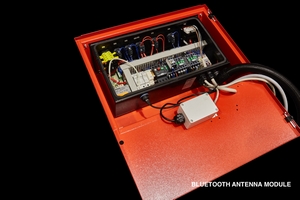

Bluetooth Antenna Module
Stirrup bending attachment
Extender Arm for large radius bending

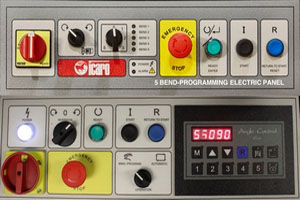

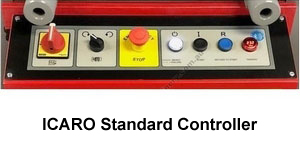

Controller Options
- Set bending angles by changing the limit switch striker pin
- Bi-directional table rotation selector
- Reference return switch Supply voltage Indicator
- Set bending angle by changing the limit switch striker pin
- Record 5 sequential bending angles
- Bi-directional table rotation selector
- Reference return switch Supply voltage Indicator
- Set bending angles using digital keypad
- Record 5 sequential bending angle programs
- Select quantity / bending piece counter
- Angular correction + / – Degrees
- Programmable Bi-directional table rotation
- Reference return switch

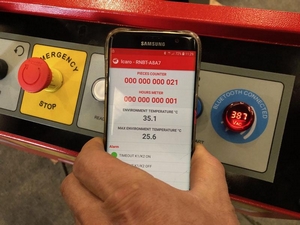

ALL ICARO BENDERS ARE DELIVERED BLUETOOTH-READY: simply purchase an antenna, which is extremely easy to install, and download a free software designed for both Apple and Android.
Each bender is fitted with our extremely innovative technology for Bluetooth diagnostics, that will let you check the conditions of your machine at every moment.
