Name: Bomar Type T Saw Roller Conveyor Material Handling System
Brand: Bomar
SKU: BOMAR-TYPE-T-SAWROLLER
Availability: InStock

Description

Bomar Bomar Type T Saw Roller Conveyor Material Handling System & Length Stops Brochure

Highly flexible handling solution for feeding medium weight materials. With the bearing capacity up to 600 kg and a wide range of accessories and connection parts of BOMAR band saws, System T is an ideal partner for handling materials in your workshop. Thanks to the default lengths of 2 and 3 m, the roller tracks are flexible and may be adjusted to any environment.

Key features

flexible handling solution
Individual modifications
Length measuring – precise cuts
wide range of connection pieces

Parameters

Description	Width	Module	Rollers	Roller Ø	Legs	Loading capacity
T 440	440 mm	2000 mm	6	70 mm	3	600 kg/m
	440 mm	3000 mm	9	70 mm	4	600 kg/m
T 540	540 mm	2000 mm	6	70 mm	3	600 kg/m
	540 mm	3000 mm	9	70 mm	4	600 kg/m
T 640	640 mm	2000 mm	6	70 mm	3	600 kg/m
	640 mm	3000 mm	9	70 mm	4	600 kg/m

Lenght stops

TA – Manual material length-stop with band scale

Bomar Type T Saw Roller Conveyor Material Handling System Ta Manual Material Length Stop With Band Scale

TA measuring stop with simple adjusting and uncomplicated control. With a standard length 2, 3, 4, 5, and 6 m, it is suitable for every saw. The guide-rail is fitted with a measuring tape along its whole length. The stop arm may be tilted to enable the material to pass through.

Measuring lengths
Type	Measuring length
TA 2	2000 mm
TA 3	3000 mm
TA 4	4000 mm
TA 5	5000 mm
TA 6	6000 mm

TRA – Manual material length-stop with digital display

Bomar Type T Saw Roller Conveyor Material Handling System Tra Manual Material Length Stop With Digital Display

Without necessary power supply, with a long-life battery, the digital measuring stop TRA guarantees accurate measurements along the whole length. The stop support is adjusted manually and its position is shown on the display with 0,1 mm accuracy. The digital display shows absolute dimensions and dimensional strings. The stop arm may be tilted to enable the material to pass freely.

Measuring lengths
Type	Measuring length
TRA 2	2000 mm
TRA 3	3000 mm
TRA 4	4000 mm
TRA 5	5000 mm
TRA 6	6000 mm
TRA 10	10000 mm

TNCA – Length-stop systems with automatic positioning

Bomar Type T Saw Roller Conveyor Material Handling System Tnca Length Stop Systems With Automatic Positioning

The CNC-controlled measuring stop TNCA provides a full comfort of an additional measuring axis of the machine. The control allows absolute dimensions and dimensional strings to be programmed and offers a 99 program memory with 99 entries. The length measurement is performed with a magnetic measuring system along the whole length of the stop with 0,1 mm accuracy.

Measuring lengths
Type	Measuring length
TNCA 3 R/L	3000 mm
TNCA 4 R/L	4000 mm
TNCA 5 R/L	5000 mm
TNCA 6 R/L	6000 mm

Accessories

Support leg

Bomar Type T Saw Roller Conveyor Material Handling System Support Leg

A supporting leg may be mounted at any time as additional strengthening or modification of the basic version of connection with the full number of feet.

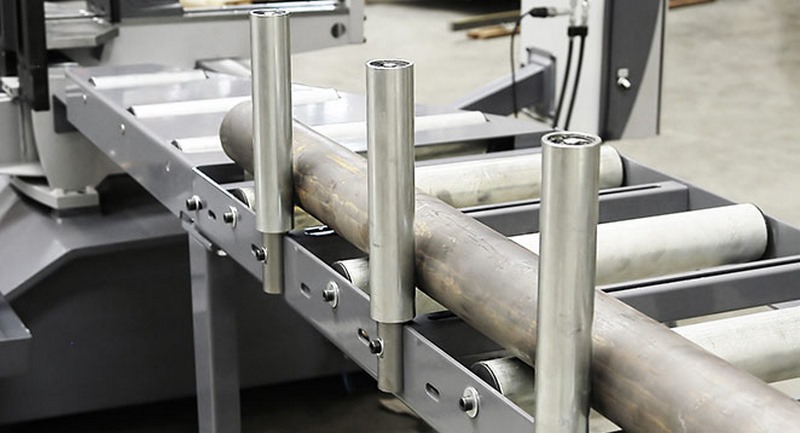

Fixed vertical steel roller

Bomar Type T Saw Roller Conveyor Material Handling System Fixed Vertical Steel Roller

In an ideal position, aligned with the axis of the saw rear jaws, vertical rollers ensure angle precision, simpler working operations, and safety of the operator and other persons in the vicinity of the machine.

Legs for material preparation

Bomar Type T Saw Roller Conveyor Material Handling System Legs For Material Preparation

Due to the width of the support legs, sufficient material can be prepared for the cutting process. This will reduce the time and complexity of material preparation.
